Error: Size 1788... is larger than MaxDocumentSize 16793600 in ProfileUnity Console

Error: "Size [X] is larger than MaxDocumentSize 16793600" in ProfileUnity Console

ProfileUnity Console — MongoDB Document Size Limit Exceeded When Clicking Update

Overview

Symptom

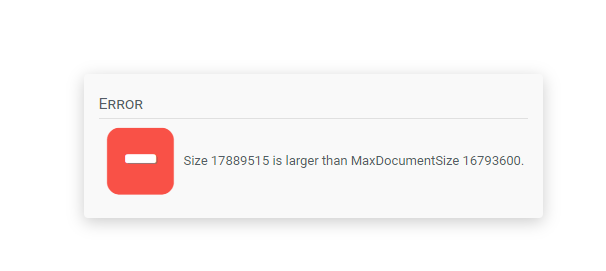

When clicking the Update button in the ProfileUnity Management Console, the following error is displayed and the configuration change is not saved:

The number before "is larger than" varies and represents the actual byte size of the ProfileUnity configuration document at the time of the failed write. The number 16793600 is a fixed MongoDB limit (16 MB). The error may also appear as:

• "Size is larger than MaxDocumentSize" (without the specific byte count)
• A generic console save error referencing MongoDB in the server logs

Immediate Resolution

If the error appears when attempting to save, the following steps reset the browser session state and typically allow the current save to succeed:

1. Click Cancel or navigate away without saving.
2. Log out of the ProfileUnity Management Console completely.
3. Close the browser tab or window.
4. Log back in to the ProfileUnity Management Console.
5. Navigate back to the section you were editing and click Update.

Root Cause

MongoDB enforces a maximum BSON document size of 16 MB (16,793,600 bytes). This is a platform-level constraint that applies to any application using MongoDB, regardless of the data being stored. When any single document in the database reaches this threshold, further writes to that document are rejected until its size is reduced.

In large or long-established ProfileUnity environments, configurations naturally grow over time as rules are added across modules, portability paths are expanded, and new features are adopted. Environments most likely to encounter this limit are those with rich, complex configurations that have evolved over several years. Common contributing factors include:

• A large number of portability rules with detailed file and registry path lists
• User Defined Script rules with substantial inline script content
• Extensive FlexApp package assignments or multi-layered filter conditions
• Configurations that have been in active use for many years with accumulated rules across multiple modules

Reducing Configuration Size

To permanently resolve this error, the ProfileUnity configuration document must be reduced below the 16 MB limit. The following actions have the most impact:

• Remove unused or legacy rules across all modules. Delete rules that apply to users, groups, or applications that are no longer active, and consolidate any duplicate rules.
• Trim portability path lists. Remove paths that are no longer needed and use folder-level or wildcard paths where possible rather than enumerating individual files.
• Externalize large script content. Move inline script bodies in User Defined Script rules to external files on a network share and call them via powershell.exe or cmd.exe with the file path as an argument.
• Split the configuration. If the document cannot be reduced enough, split it into two or more separate ProfileUnity configurations scoped to different user groups using filter conditions and the Secondary Path (ADM/ADMX GPO).
