Clustering - Error adding third cluster node: "Object reference not set to an instance of an object."

Steven Hajek
  • Created:
  • Updated:



Problem:

Unable to add a third, or subsequent, node to a ProfileUnity 6.8.5 cluster, the error presented is "Object reference not set to an instance of an object." on the second step of the process.


Resolution:

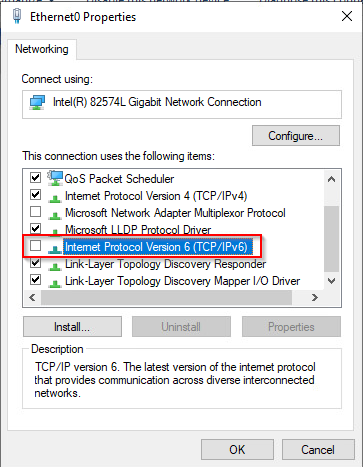

Check if your environment is assigning IPv6 addresses via an IPv6-enabled DHCP scope.  If so, disabling IPv6 on each of your ProfileUnity console nodes' network interfaces will allow clustering to proceed.


Resolution 2:

Check Liquidware Labs Licensing Service - Is it running? If not start the service manually.

Resolution 3:

Step 1:

Can all consoles access this page?

https://YourProfileUnityHost:443/api/getlicensingcertificate

Try all PU consoles accessing all PU consoles.

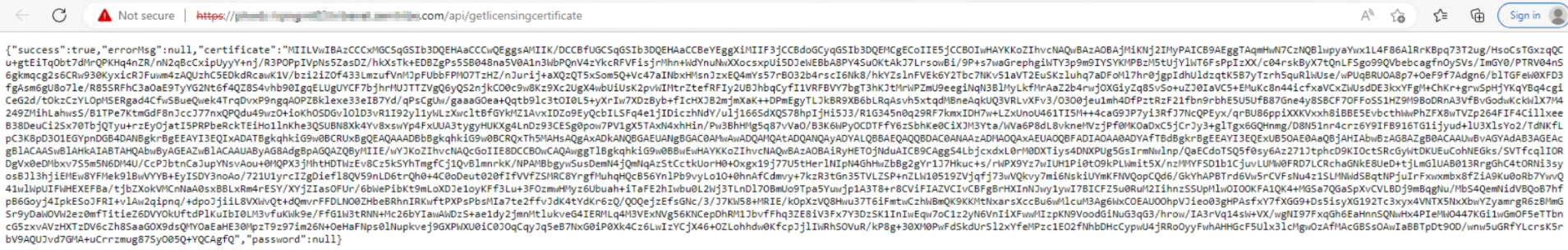

If working correctly the outcome of accessing this page should be:

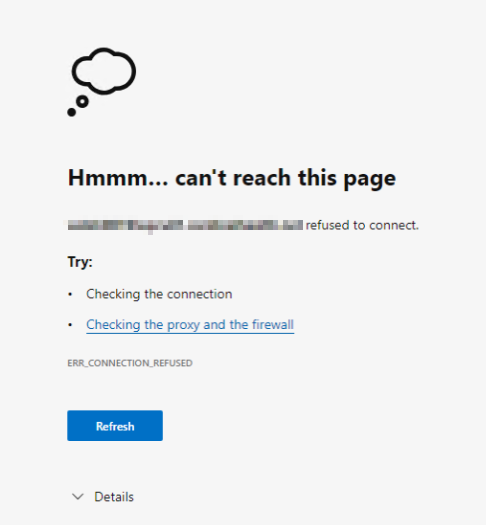

If not working correctly:

Step 2:

Login using prou_services account (password was setup during the ProfileUnity console installation)

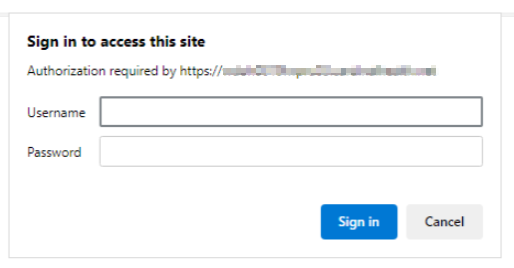

On the pop-up login box, login with the prou_services account and password.

The correct output should look like this:


If there are issues, follow this KB:

Clustering - Error adding a cluster node: "Remote node https://<pu_consolename.com:8000/' did not communicate back – Liquidware Customer Support (zendesk.com)



Product: ProfileUnity-FlexApp

Product Version: 6.8.5+
