Problem:
VHDs do not get mounted - The parameter is incorrect
Symptoms:
There are 2 errors showing on the screen at logon.

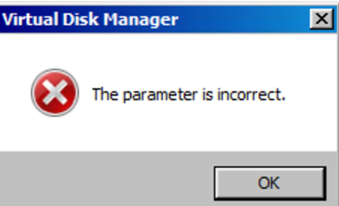

1.Windows error
The parameter is incorrect

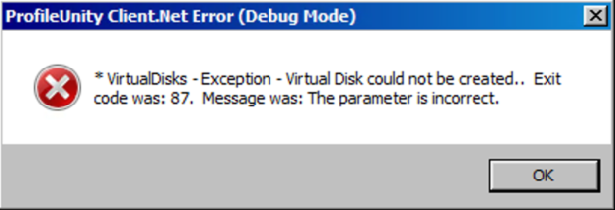

2. Portability error
Virtual Disk could not be created.. Exit code was: 87. Message was: The parameter is incorrect.
Resolution:
It is a problem with Windows 7 VHD’s which do not support a block size of 4096. The issue was found on a file server 2016 Datacenter, configured as a Failover Cluster running Storage Spaces Direct which requires minimum block size of 4096. There is no problem mounting VHDs on Windows 10.
The following URL shows a Microsoft reference to this problem.

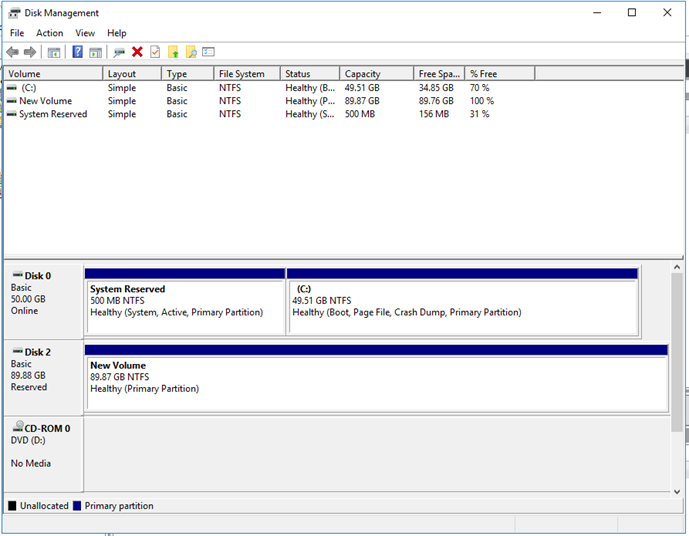

To check the block size on a servers disk determine the disk number in disk management ( in this case it will be Disk 2)

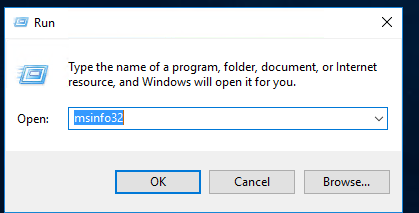

Open the run command prompt and type msinfo32
Expand components Storage and click on Disks

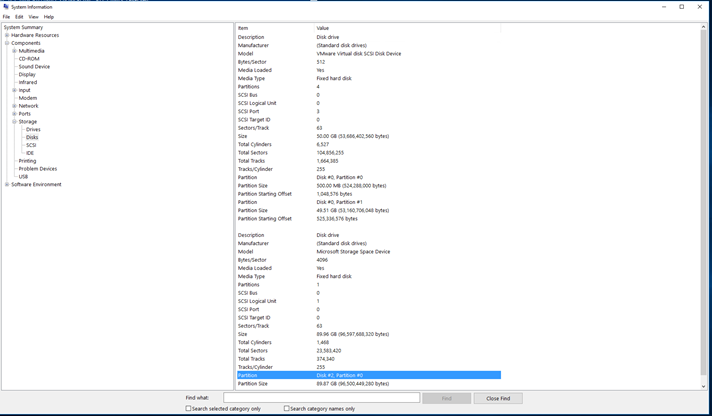

Note the Bytes/Sector size, in this case it is 4096, and that is not a compatible block size for windows 7

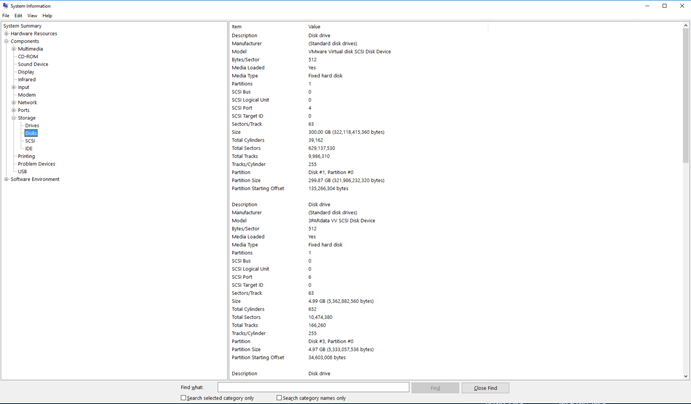

Below is a screenshot of the disks on the working cluster, the block size is 512. This clustered file server is configured to use a shared raw disk presented from VMware and is not using the Storage Spaces Direct feature of 2016 for its clustering
Product: ProfileUnity
Product Version: Any
